Fuel shutoff valve connection to cable

[Bruce Caldwell]

Does anybody have any pics or info of how to connect the fuel shutoff cable to the valve on the bottom of the main tank?

[taylorukuk]

Unfortunately this drawing isnt very clear. Just rebuilt our fuel valve and awaiting a new o ring to complete (MS29513 - 011 I think)

[Woody]

Bruce,
Mine isn't a cable rather a rod with threaded end and clevis at valve.

[Mike S]

Mine is a rod as well, thought I had a piccy but no. I'll try to get to the hangar today and take a snap unless someone else provides.

[Woody]

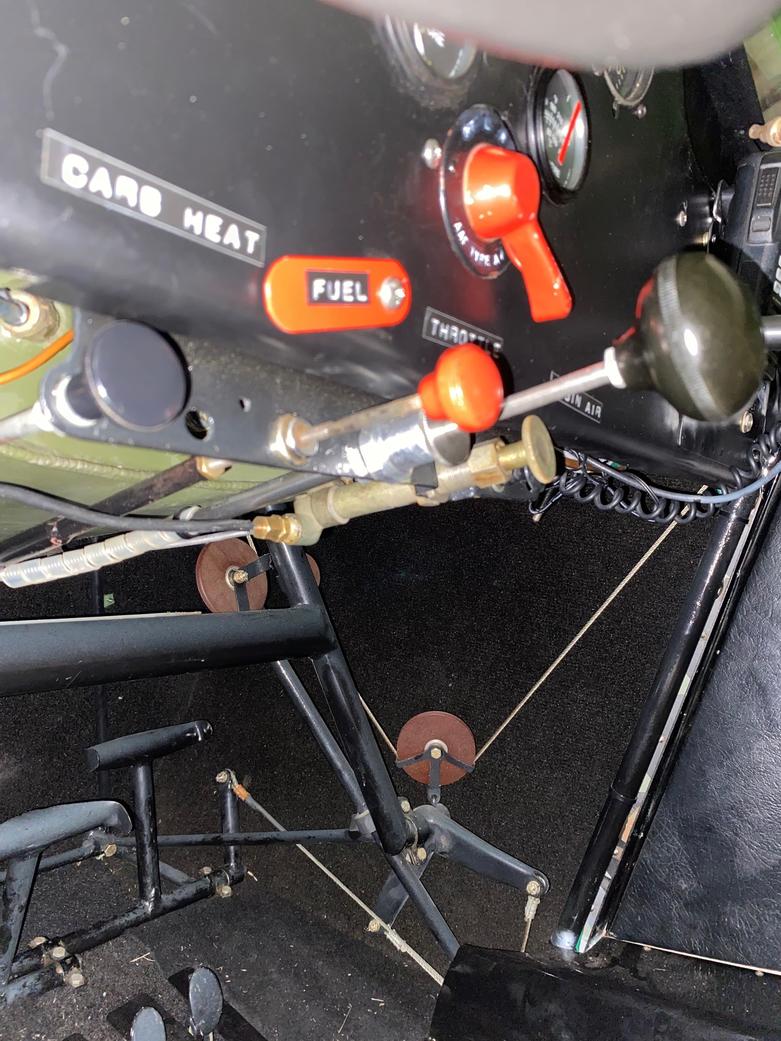

Here you go. It is a piece of 3/8 " x .035 tube with 10-32 nut welded on end. Knob has 10-32 threaded shaft. The forward end is flattened and a 3/16 hole drilled for clevis pin.

[Mike S]

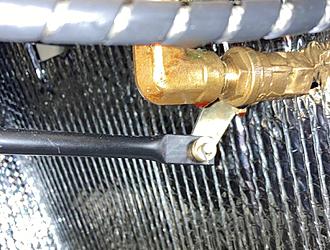

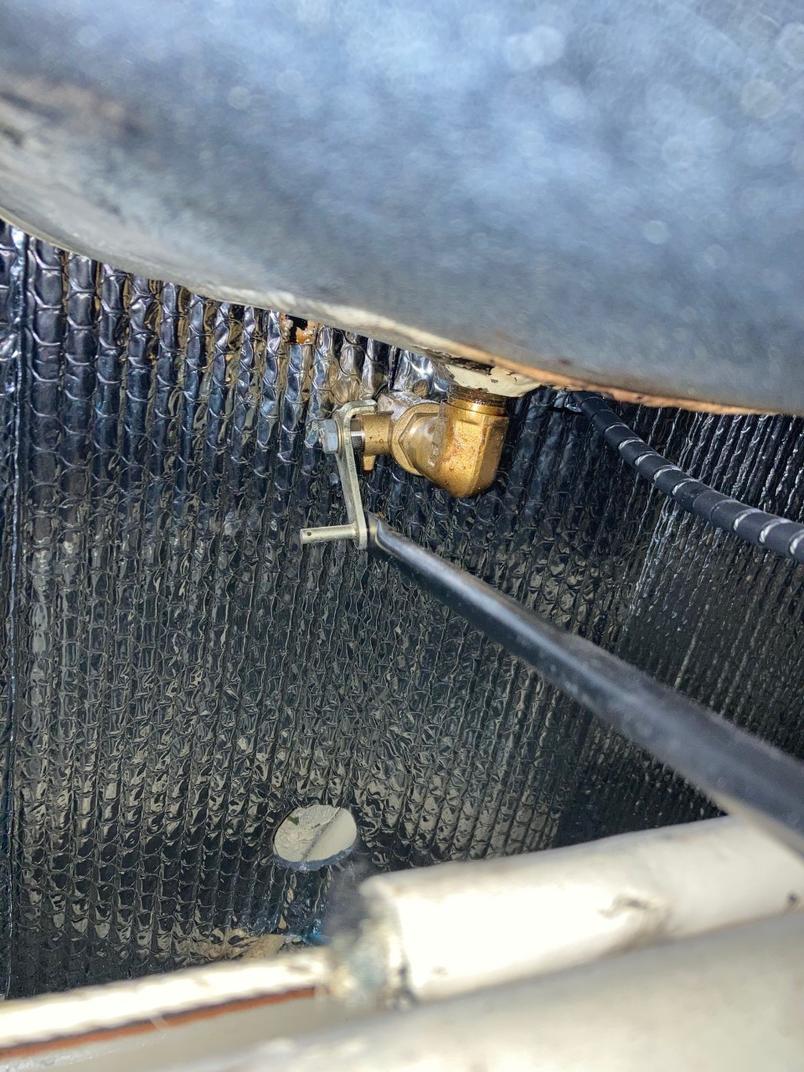

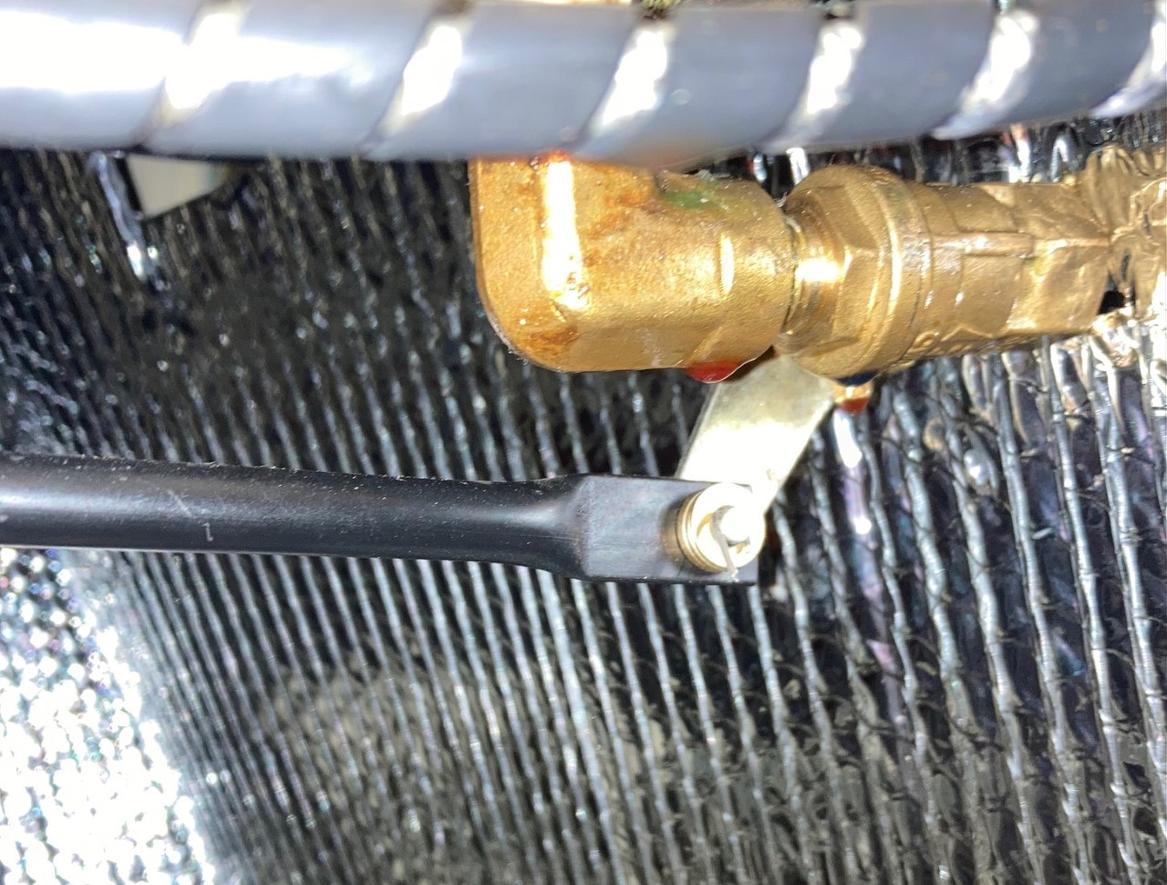

Here's the fuel valve end:

[astjp2]

Unfortunately this drawing isnt very clear. Just rebuilt our fuel valve and awaiting a new o ring to complete (MS29513 - 011 I think)

For what? no orings were used int he original installation...it was a leather packing..

[taylorukuk]

Ours has quarter turn restrictor, spring, washer and "o" ring - Same main tank valve as every picture I have seen on this forum!

[Ragwing nut]

its a rod that attaches to a modified valve handle. etuscheon in the panel that it passes through. I have shut off rods if you need one.

[Bruce Caldwell]

This is for a 46 BC-12D. Thanks for the input so far. I like the threaded shaft but not sure how to attach it to the valve handle.

[Woody]

Drill a 3/16" hole and insert clevis pin. If you want you can braze the pin to handle.

[Scott]

For what? no orings were used int he original installation...it was a leather packing..

That's likely why they leaked! The MS29513 (I can never remember the dash number) O ring however fits perfectly and is a good solution to the external leak issue. Internal leaks, a different story.

[Woody]

You can fix the internal leak by using fine valve grinding compound and lapping the cone to seat.

[taylorukuk]

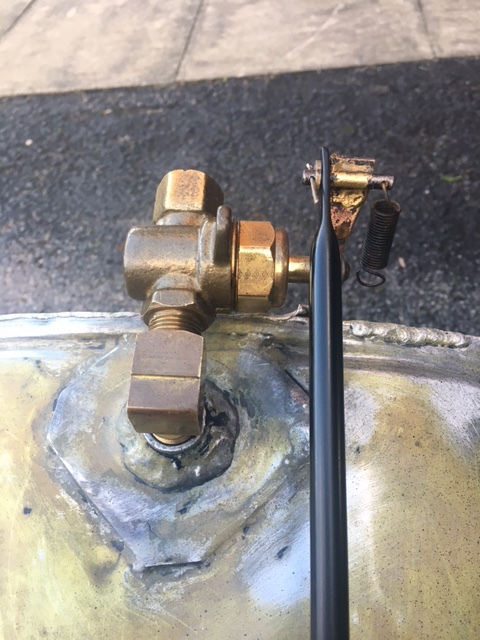

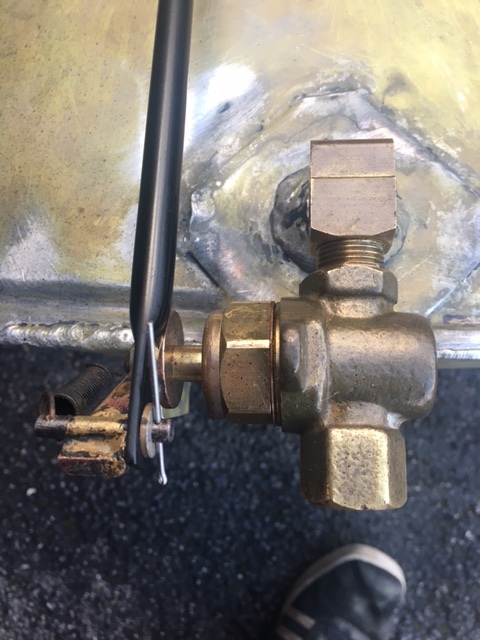

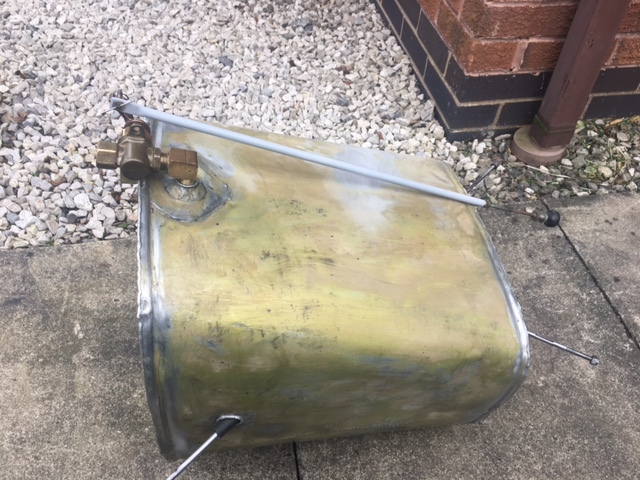

This may help

[Bruce Caldwell]

That helps, but do you have a closer shot of how the rod attaches to the handle? Thanks!!!
