  • Shinn Brake Adjusters

    At this time I am waiting on my DER to provide the FAA form to install hydraulic brakes on my TCraft. For right now I need to rely on the Shinn Brakes and purchased the nuts and pincer spring thingies from Skybound The adjustment nuts I have don not have the pincer springs. How are these pincers anchored after adjustment? I saw cotter keys on the skybound diagram but not certain how the spring thingies are satisfied off with the cotter keys? I paid a lot./ must be made of unobtanium/ Thank you all for your guidance

  • #2
    Do a search for Rob Lee's brake adjustment, that may help, if not, it sure is good reading, for those of us with shinn brakes anyway

    Comment


    • #3

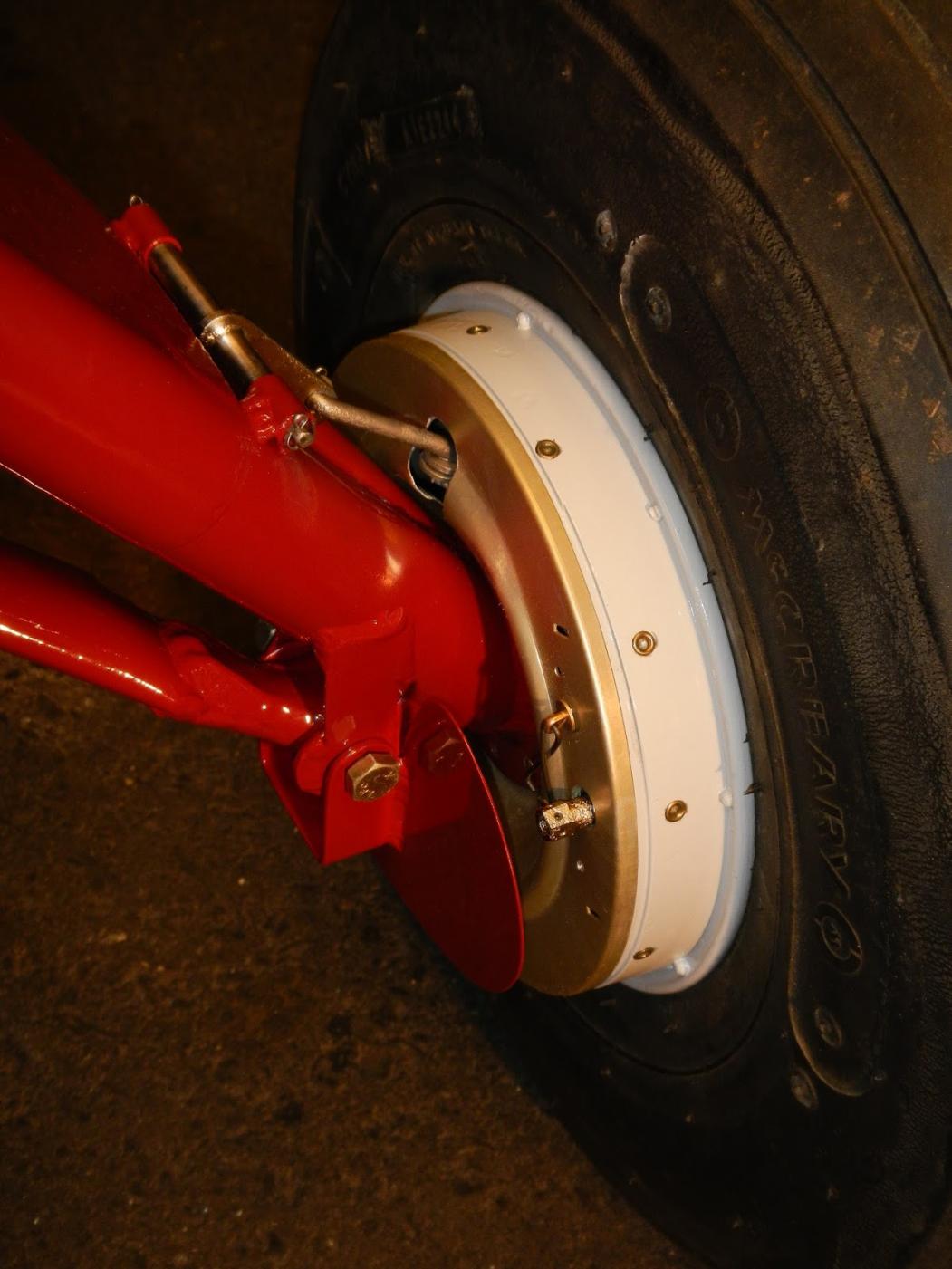

      Put the wire locking spring through the eye of the cotter pin, put the cotter pin in the hole in the back plate, and open the split pins on the inside of the plate.

      Click image for larger version

Name:	DSCN5423.jpg
Views:	22
Size:	119.3 KB
ID:	183918
      Scott
      CF-CLR Blog: http://c-fclr.blogspot.ca/

      Comment


      • #4
        Originally posted by LostnSpace View Post
        Do a search for Rob Lee's brake adjustment, that may help, if not, it sure is good reading, for those of us with shinn brakes anyway
        Here's the direct linky:

        https://www.taylorcraft.org.uk/Brake-issues.pdf

        Comment


        • #5
          "Put the wire locking spring through the eye of the cotter pin, put the cotter pin in the hole in the back plate, and open the split pins on the inside of the plate"
