Brake bellcrank spring

[1938BF50]

Does anyone have a clear pic of the correct installation of this brake bellcrank spring? I should have taken a pic.

[M Towsley]

Not sure if a couple of photos here would help if you look close. Page 3 of this document. https://www.taylorcraft.org.uk/Brake-issues.pdf

[Scott]

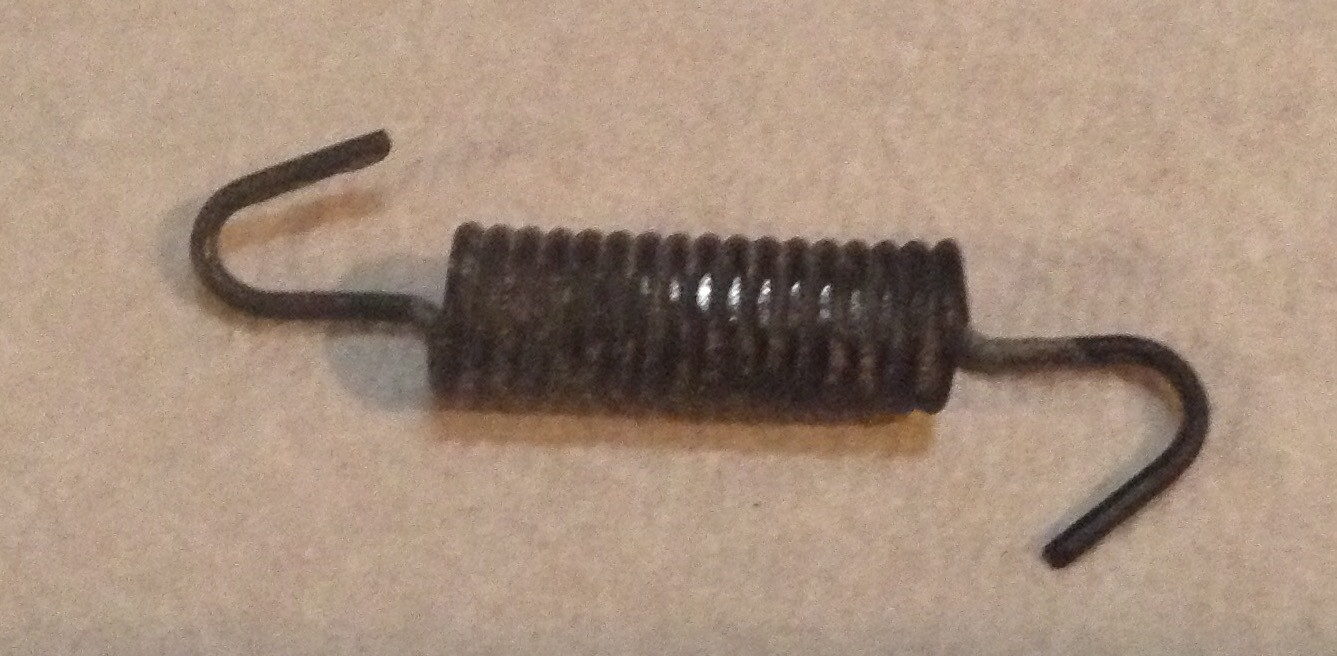

Little out of focus but you'll get the idea

[1938BF50]

Thanx guys, that is a great help. I probably painted over those holes without even seeing them. I did redrill the two drain holes in each gear..

[3Dreaming]

I just installed springs on a 46 T-Craft that I bought. There was no evidence of holes ever having been drilled for the springs.

[1938BF50]

Mine is a '40, and yes, I painted over the holes. After finding them and redrilling, the springs fit perfectly. Thanks all.
