  • Wanted Aileron Bellcrank

    I need a xast Bellcrank Wellcast #1210 .

  • #2
    Which piece is that? The actual crank or the hinge fitting support? Many don't have a very good Illustrated Parts Breakdown and a photo will make sure we are looking for the right part.

    Hank

    Comment


    • #3
      Hank,
      I only need the bellcrank arm, not the support. I have some parts left over from a clip wing project including the control Colum a frame, rudder bars, wire seat/belt attachment and several wing tanks.if any one needs them.

      Comment


      • #4

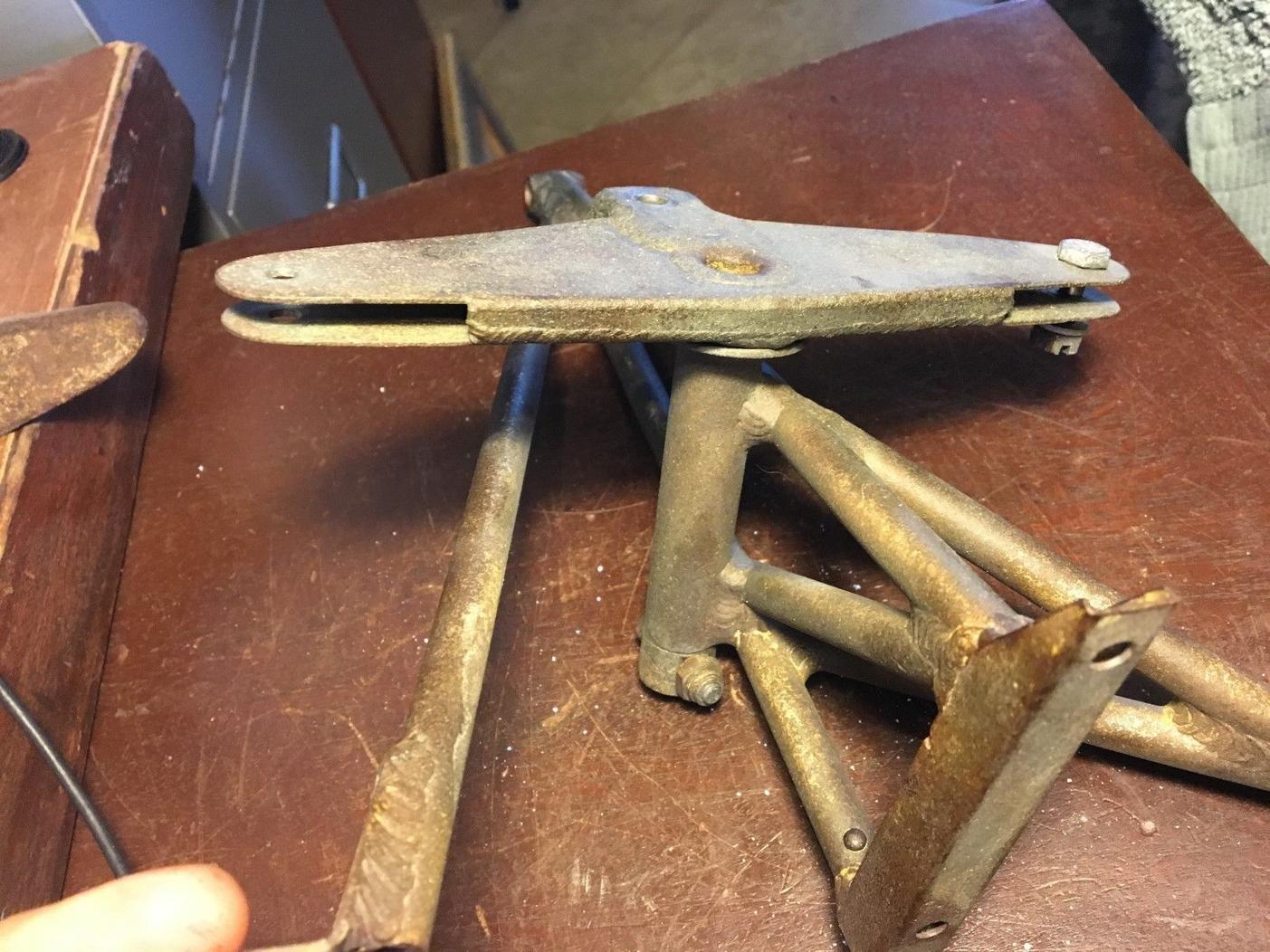

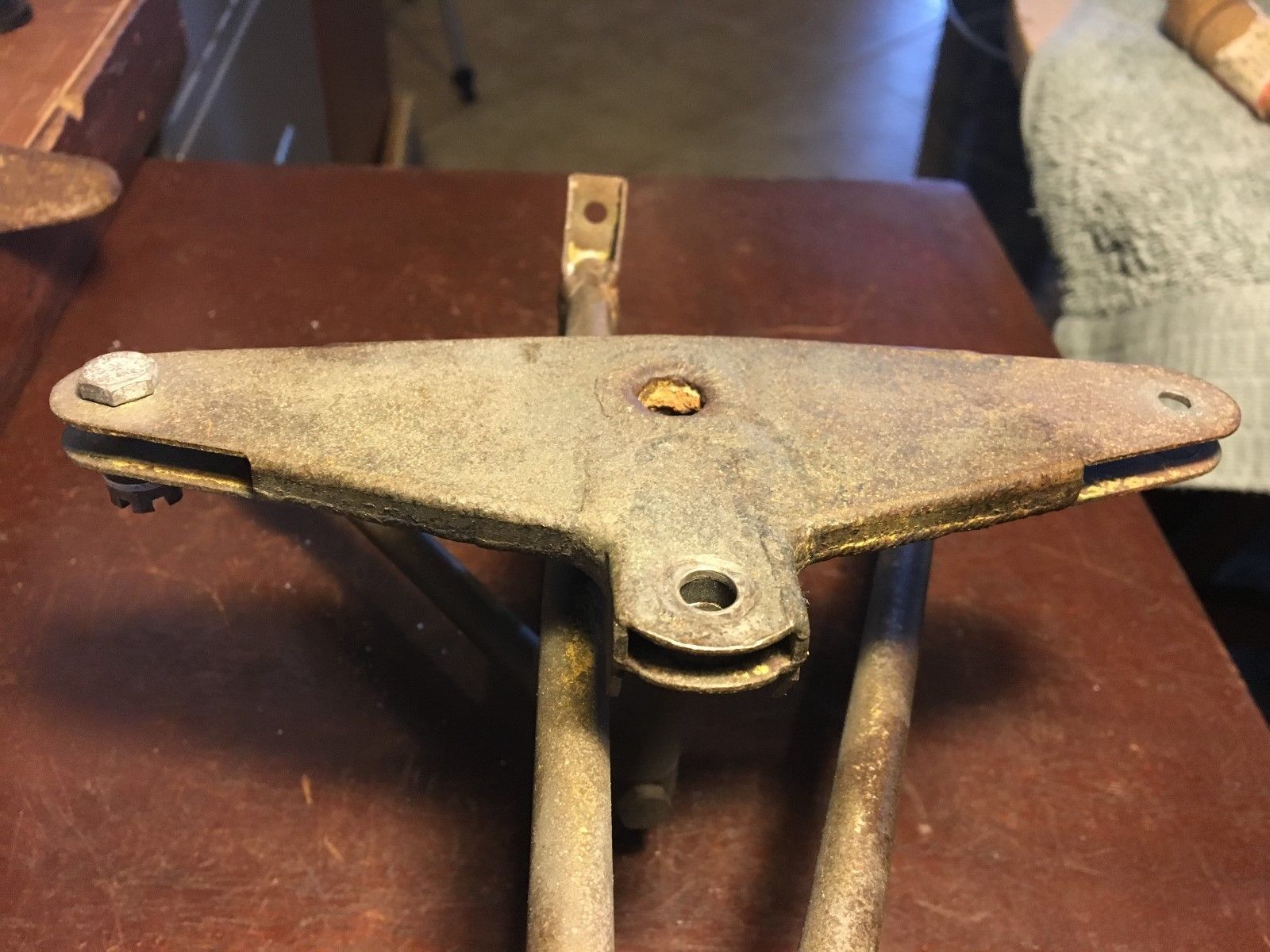

        This is the welded assys. The crank is different from the cast assy cranks. Looking for a photo of the cast assy crank.

        Hank
        Attached Files

        Comment


        • #5

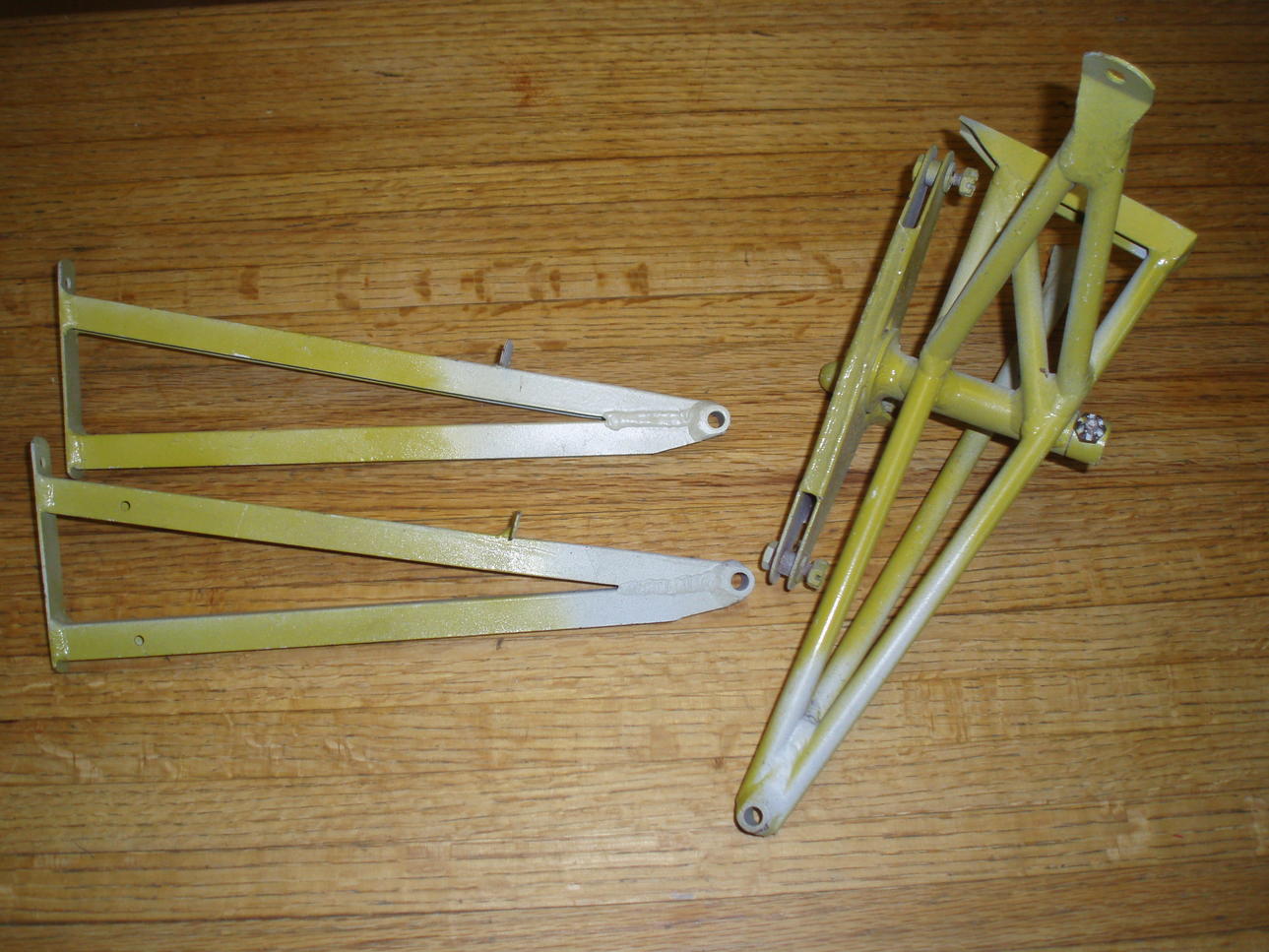

          More welded cranks
          Attached Files

          Comment


          • #6
            Well CRUD!! None of my photos have the crank on a cast fitting! Anyone else have one?

            Hank

            Comment


            • #7
              Stand by...

              Comment


              • #8

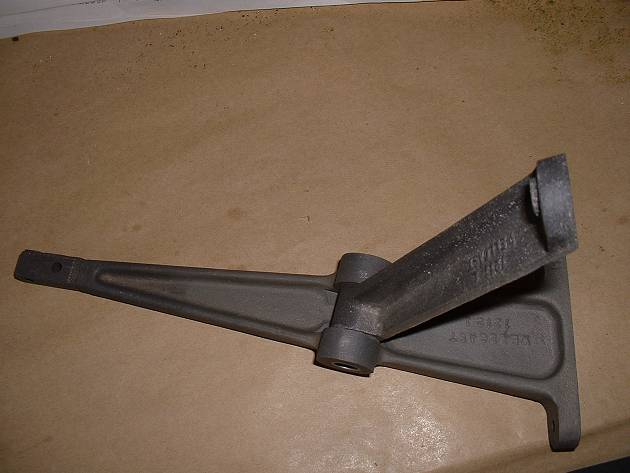

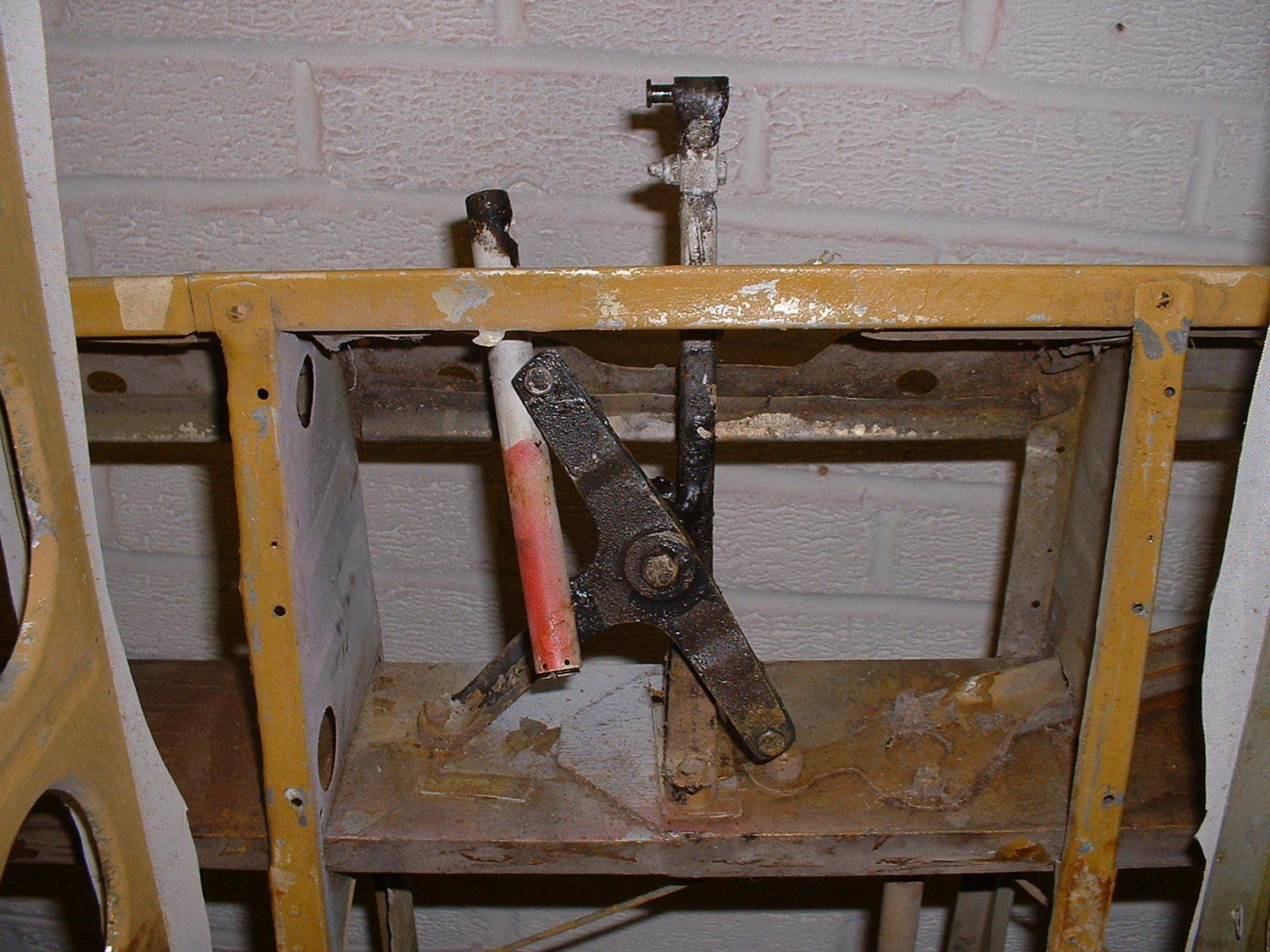

                All of these pictures (and more about my post-war aileron rebuild) here

                Comment


                • #9
                  Stand by again...

                  Comment


                  • #10
                    Click image for larger version

Name:	image_12856.jpg
Views:	190
Size:	283.4 KB
ID:	185714Click image for larger version

Name:	DSCF0636.JPG
Views:	163
Size:	94.4 KB
ID:	185715 This bellcrank?
                    Last edited by Robert Lees; 12-21-2019, 13:09.

                    Comment


                    • #11

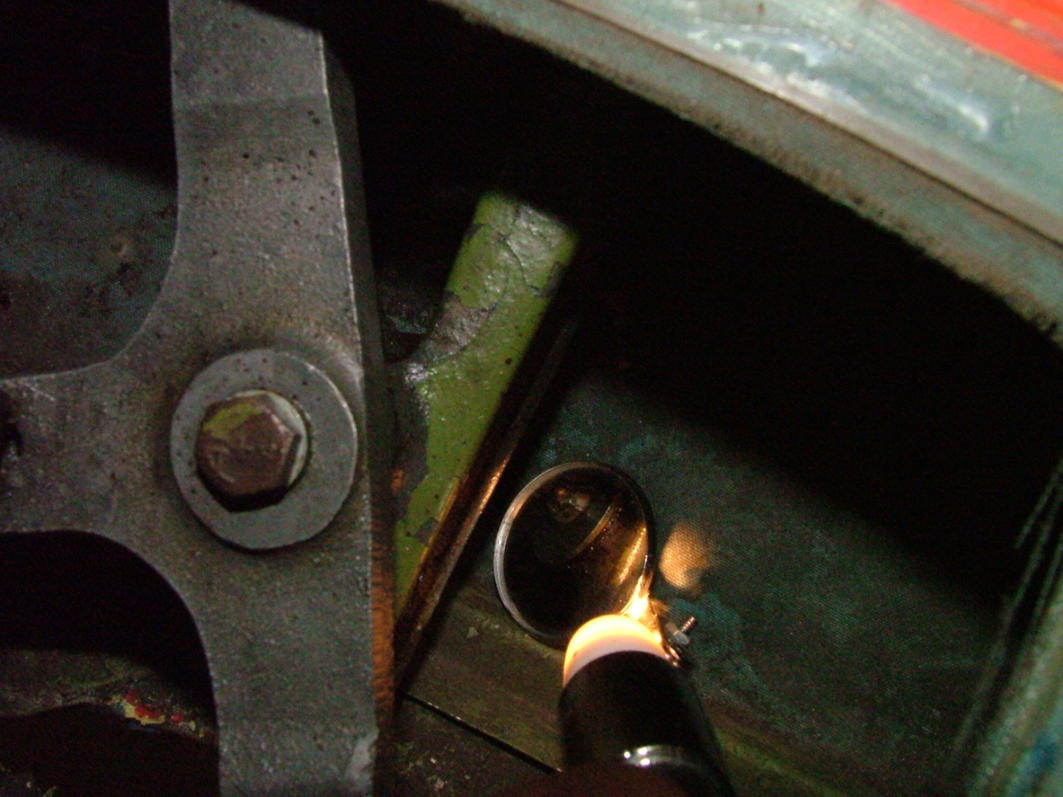

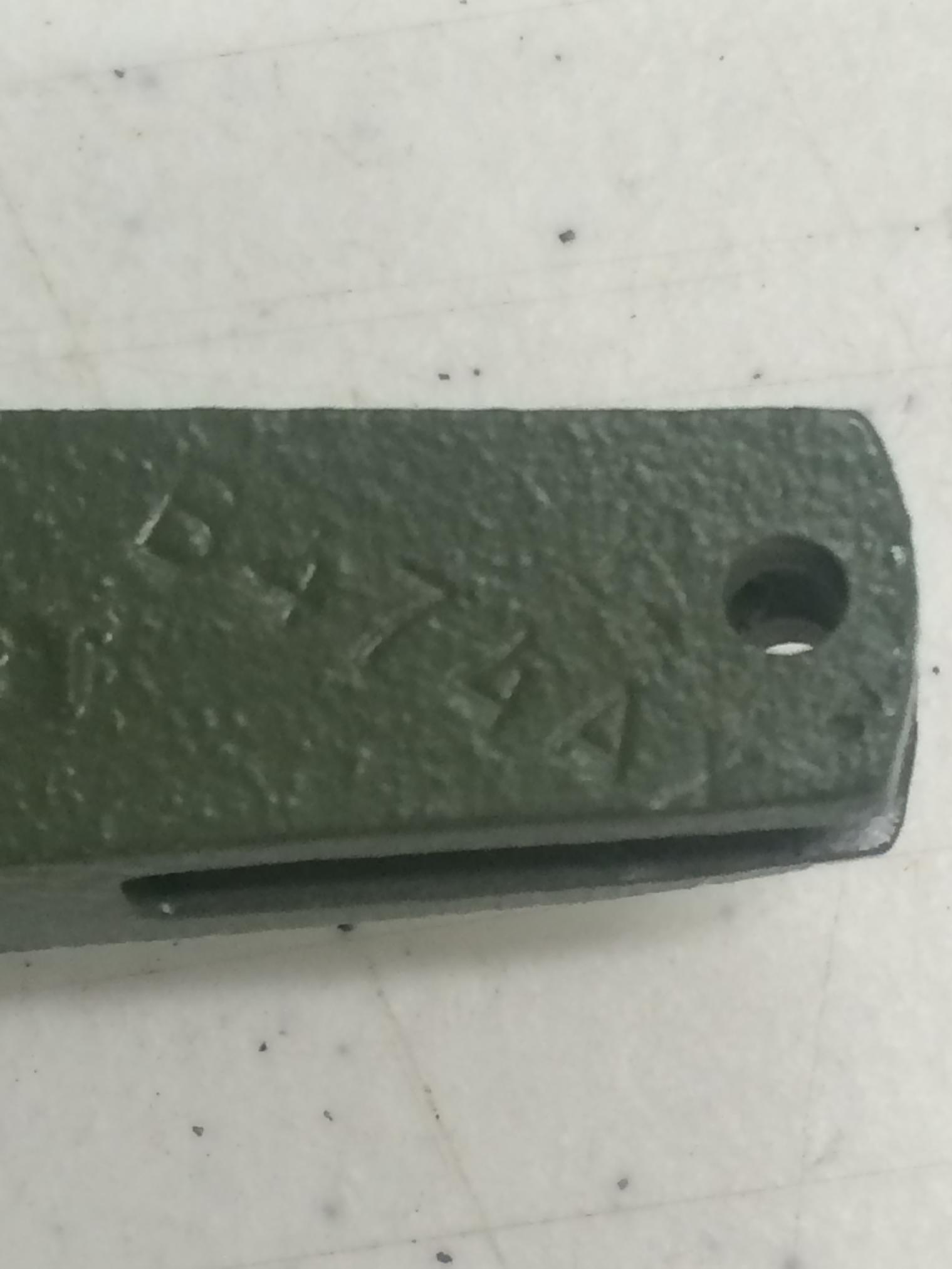

                      Robert, That is the one. It says Welcast 1210. Part # B474A

                      Comment


                      • #12
                        And I get some new photos to add to the collection. This time I will try to remember to attribute them! ;-)

                        Hank

                        Comment


                        • #13
                          Click image for larger version

Name:	bellcrank part #.JPG
Views:	152
Size:	93.4 KB
ID:	185732Click image for larger version

Name:	bellcrank1.JPG
Views:	148
Size:	95.1 KB
ID:	185735 Hank, Click image for larger version

Name:	bellcrank center.JPG
Views:	158
Size:	110.2 KB
ID:	185733

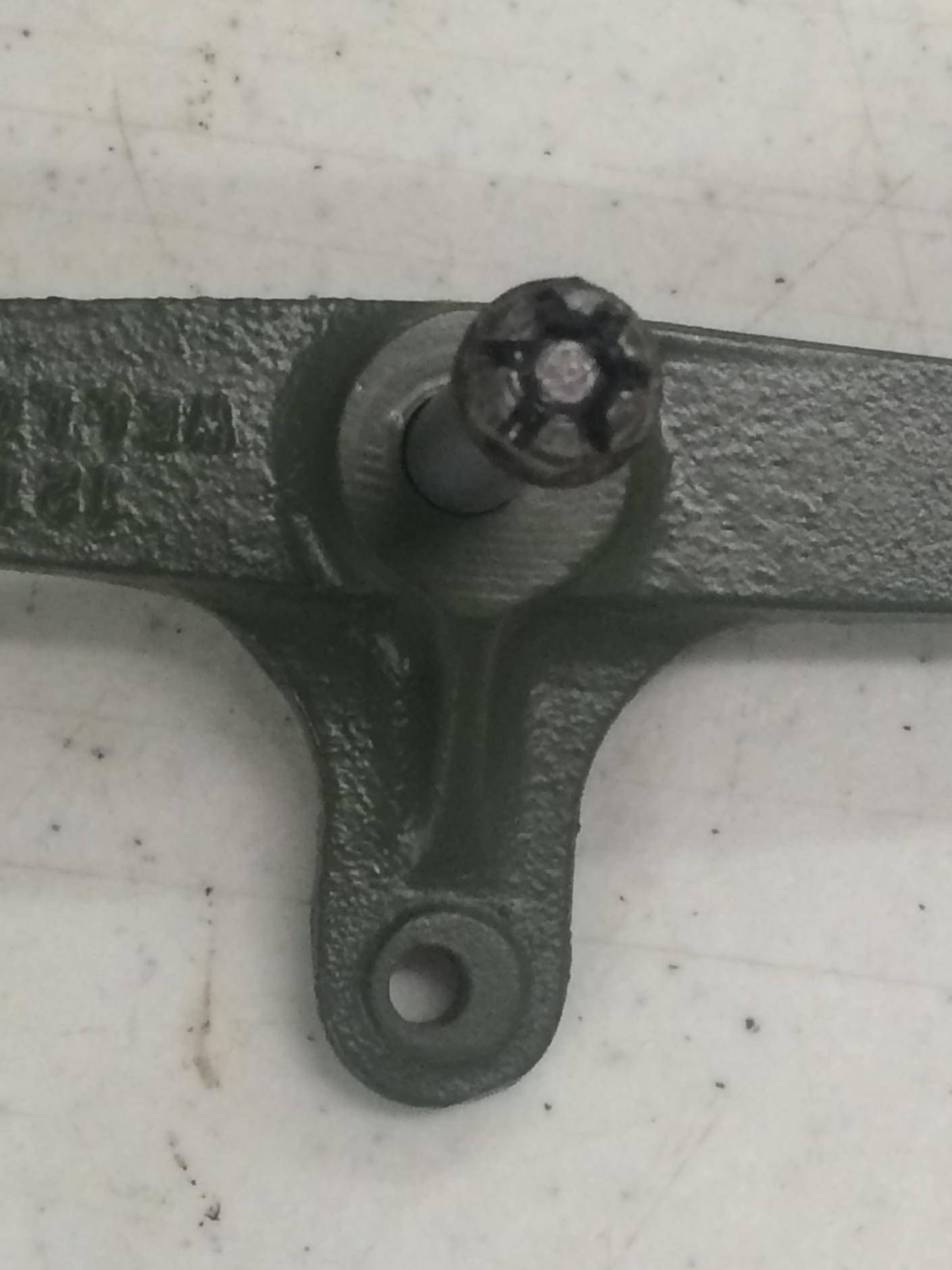

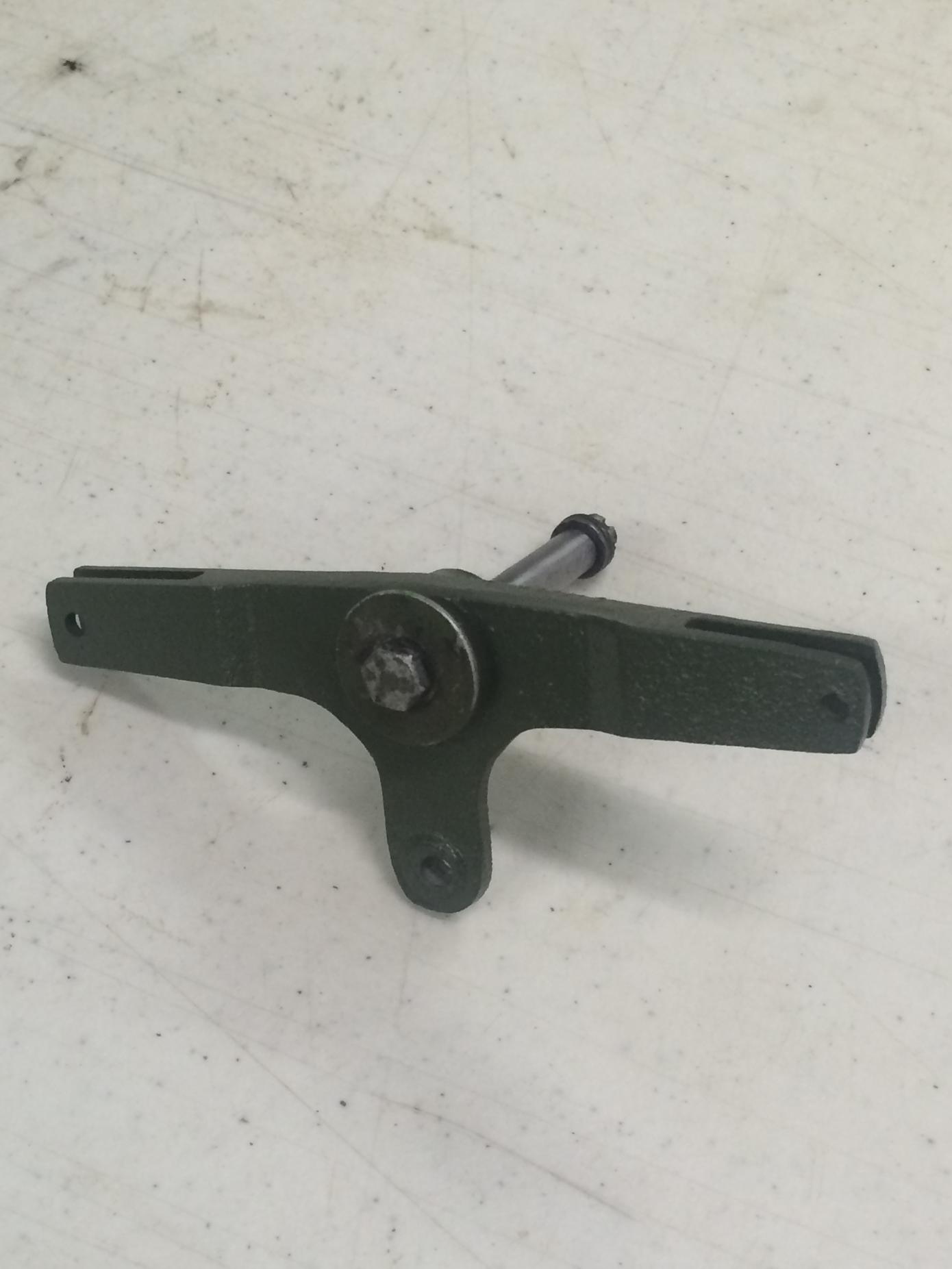

                          Here are a couple of pictures. One shows the part is machined off center. The one shows part # with an X after it. I wonder if this was rejected, but somehow installed. I have owned the plane for 30 yrs. Bellcrank had some play so I decided to rework it while recovering. My other one has the shaft pressed in the casting and it rotates in the mount. This one rotates on the casting. That is where the slop is.
                          Attached Files

                          Comment


                          • #14
                            I wouldn't think the offset would be a problem at all. The adjustment for aileron centering would compensate for it. The slop however would need to be taken up (probably just a drill and thin bushing). If it is the offset hole that is loose I would try to open the hole on the thick side to keep as much edge margin as possible.

                            Hank

                            Also stole your photos (with attribution) for the photo collection) ;-)

                            Comment


                            • #15
                              Hank,
                              If worse comes to worse I will bush it. Just thought maybe someone had one to sell. Lots of folks want the welded ones. My clip wing has one of each.
                              Tom

                              Comment
