Shinn/firestone Brakes

[Bobdog]

Hi Gang, I finishing up installing the brakes. According yo my drawings there is suppose to be an A-5010L spring to pull the bell crank (at the bottom of the gear legs) back when the brakes are released. If any one has one of these springs, could you please scan or photo it for me, and also measure the wire diameter, coil diameter, coil length, etc, so I can make a couple?

Thanks, Bob

[mulwyk]

Re: Shinn/firestone Brakes

Bob, the brake return springs were missing on my project too, I expect that is a common condition, they must rust away rather quickly in that exposed location on the gear.

I found a replacement spring at ACE Hardware for $1.59 that seems to be identical to the original. Of course, it's not PMA'd, or STC'd, or certificated, or anything like that, but I can give you the dimensions if you'd like.

[Bobdog]

Re: Shinn/firestone Brakes

Thank you Bob, but I was hoping to get a picture of an "original" spring. I also found one that worked, but I think that the original springs had a fairly short coil length and long straight tails with hooks on the ends...kind of like the internal brake springs. (I'm probably wrong)

Bob

[tim]

Re: Shinn/firestone Brakes

ya tomarrow i can find one i think and ill take a pic of it

[Bobdog]

Re: Shinn/firestone Brakes

Thanks Tim

[M Jones]

Re: Shinn/firestone Brakes

Hi Gang, I finishing up installing the brakes. According yo my drawings there is suppose to be an A-5010L spring to pull the bell crank (at the bottom of the gear legs) back when the brakes are released. If any one has one of these springs, could you please scan or photo it for me, and also measure the wire diameter, coil diameter, coil length, etc, so I can make a couple?

Thanks, Bob

Bob,

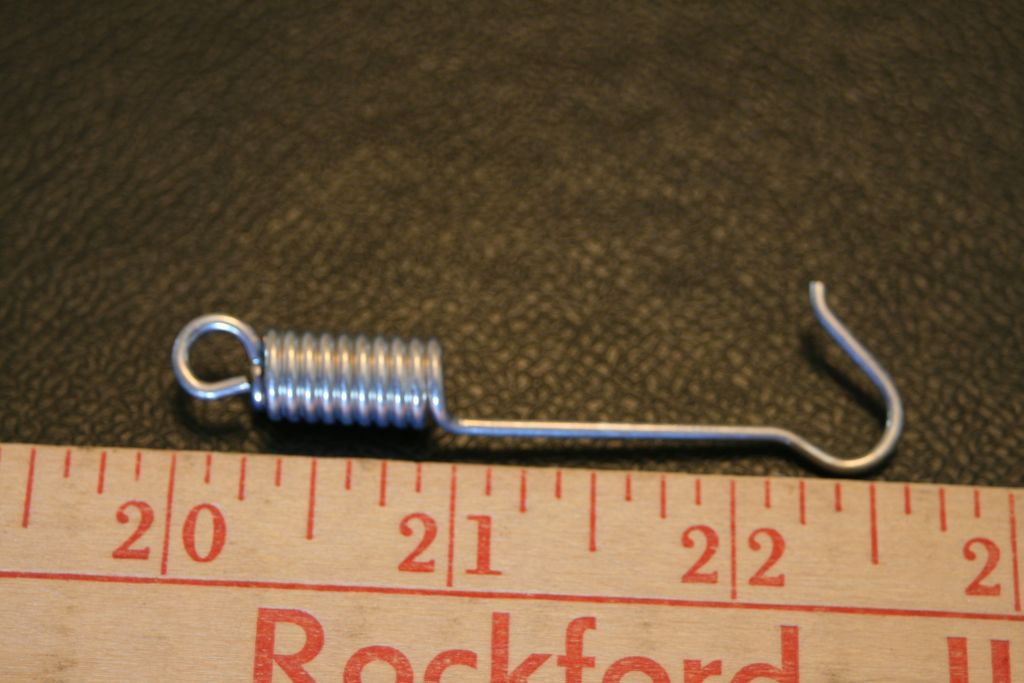

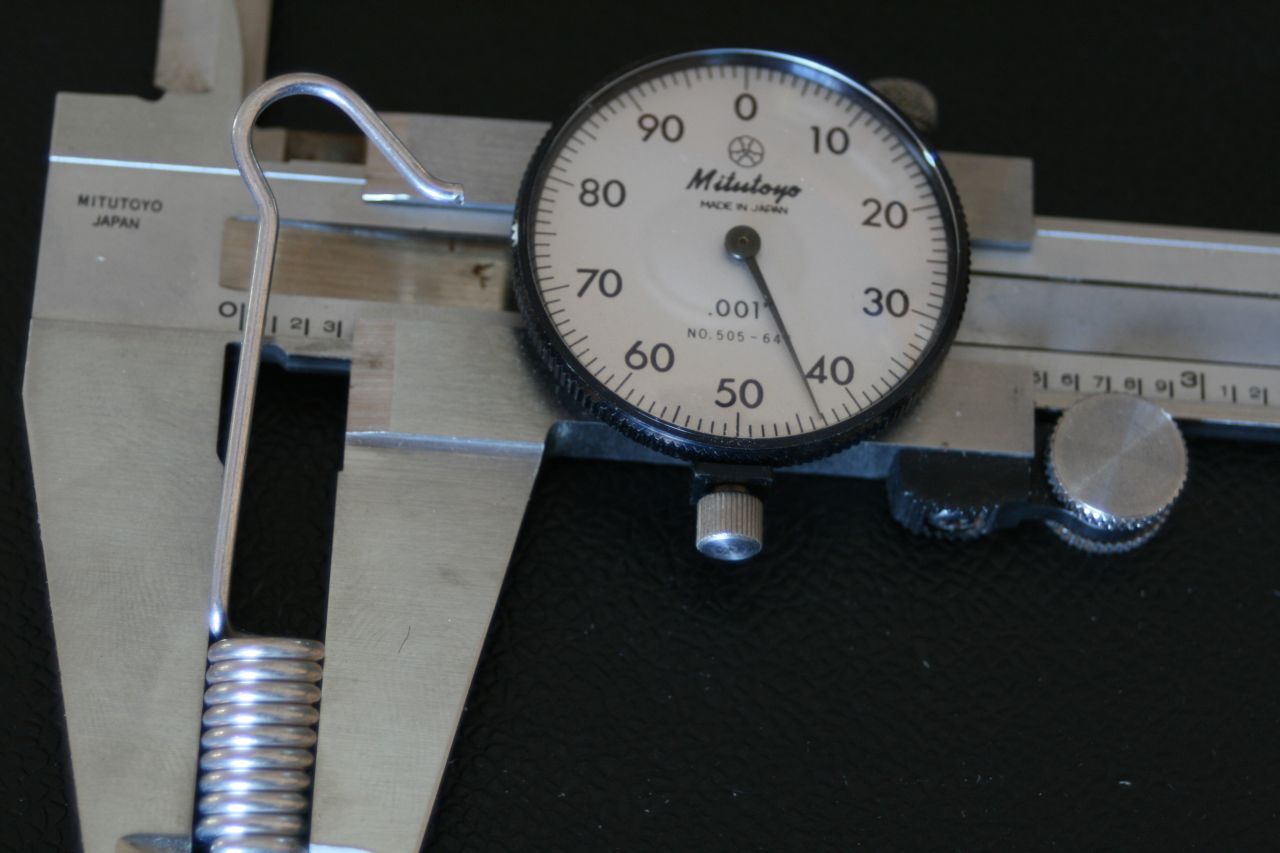

I think this is what you're looking for. The wire dia. is .063". Hope this helps if you want to make some. I bought a couple of extras last year when I ordered new brake linings and rivets from Skybound in Georgia. Nice people if you want to give them a call.

From the http://www.taylorcraft.org/resources.html website:

Shinn Wheel & Brake parts

SkyBound, Atlanta Georgia
Shinn Wheels, brakes, cables, backing plates.

Jim Greene (owner) 770-446-6797

[Bobdog]

Re: Shinn/firestone Brakes

Mike, THANK YOU!!! That's exactly what I needed. Springs like that are easy to make. I'll use stainless music wire so they won't rust. And I was correct about the shape!!!

Thanks Again, Bob

[tim]

Re: Shinn/firestone Brakes

well sorry i coulnt get the pic to u sooner but i had a buzy day lol but any how just asking how many r u going to make and would u trad or sell them ???

[Larry Lyons]

Re: Shinn/firestone Brakes

I would be interested in a set too. I am sure mine are history as it has sat on a dirt floor for 33 years.
Thanks; Larry

[Bobdog]

Re: Shinn/firestone Brakes

I am ordering the wire (stainless) to make the springs. After measuring the distance between the bellcrank and the small hole in the bottom of the gear leg, I'm afraid that the pictures M Jones sent were of the wrong spring. He probably thought I was talking about the brake shoe return springs. If Forrest or some one else that has access to the A5010L (or R) spring can get me a picture, AND they it doesn't get too harry bending the ends, I'll make some extras for free.

Bob

[M Jones]

Re: Shinn/firestone Brakes

Bob,

Sorry if I didn't give you the correct info. You're right, the pictures I posted were for the "retractor" springs.

Mike

[Bobdog]

Re: Shinn/firestone Brakes

No problem Mike. Any one else out there have a A5010L or R spring???

[tim]

Re: Shinn/firestone Brakes

well i guess i got the same part to but hey bob could i get a pair from u ??

[Bobdog]

Re: Shinn/firestone Brakes

Sure Tim, I ordered the wire today...all I need is a pic so I know what I'm making!!!
Bob

[tim]

Re: Shinn/firestone Brakes

well i gess ill see if i can find it because my friend bob has a mountain of parts so i ll see what i can do again this time
