  • Wing Rigging

    Looking for wing rigging proceedure for Model 20. I have the info on flaps and ailerons, but nothing on the rear lift strut which has threaded attachment on upper end. The front strut is solid so dihedral is pre-determined at the factory. Also, if anyone has a picture or measurments of where the stall warning sits relative to the leading edge, I would appreciate that.
    Llewellyn

  • #2
    Re: Wing Rigging

    I have it for the 15A if of any help.
    Chas. Tripp

    Comment


    • #3
      Re: Wing Rigging

      Thanks Chas, I would be interested in the information. The only difference I am aware of is the rib profile.
      Llewellyn

      Comment


      • #4
        Re: Wing Rigging

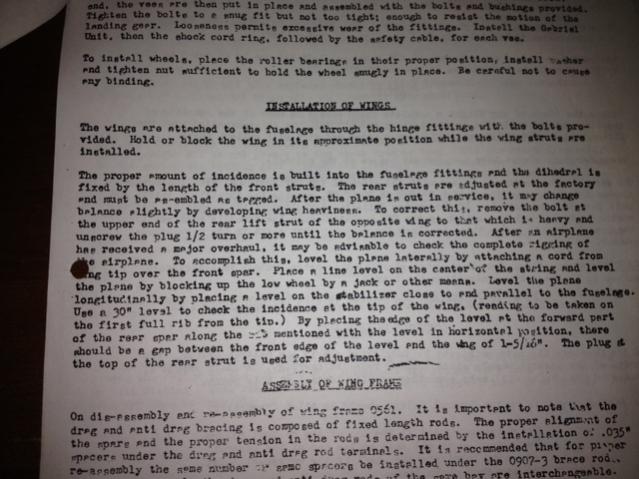

        From my owners manual. See Jpeg attached.

        I have 20 struts on a 15A. There were two wing construction types on the 15A, both same type cert. number as the 20.

        Best of luck.

        Charles LLewellyn Tripp
        Attached Files
        Chas. Tripp

        Comment


        • #5
          Re: Wing Rigging

          Many thanks Charles...rec'd your PM. I like your middle name.....
          Llewellyn
